Show all Panel mounted receptacles
/
Show all Panel mounted receptacle
Please
accept marketing-cookies
to watch this video.

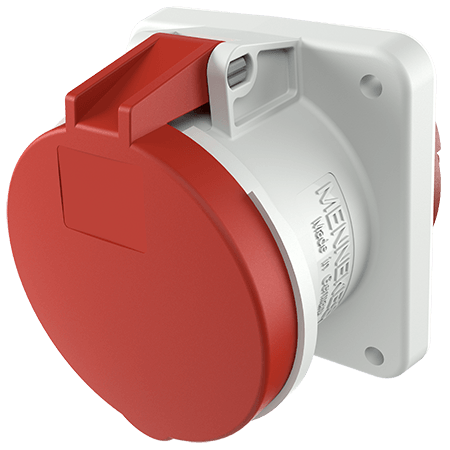

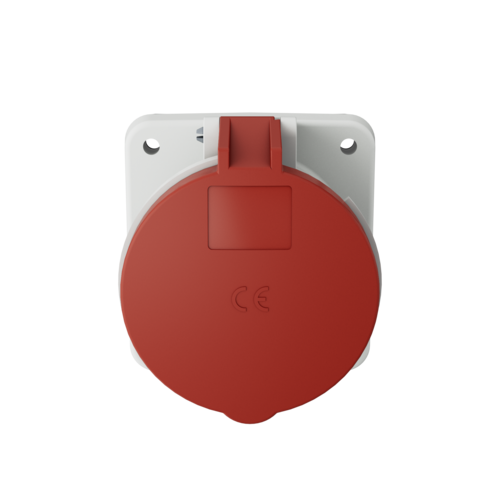

Panel mounted receptacle 1248A
Ampere
63 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
X-CONTACT
straight
products with pilot contact on request
Part no.
1248A
EAN
4015394008781
Std. Pack.
5
Add to shopping basket
Technical specifications
Panel mounted receptacle 1248A
Ampere
63 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
X-CONTACT
Protection type
IP44
Flange
107x100 mm
Fixing hole
85x77 mm
Weight
555 g
Certifications
VDE
Datasheets & Downloads
Panel mounted receptacle 1248A
Product info
Panel mounted receptacle 1248A
PDF, 169 KB
Manufacturer‘s declaration
Panel mounted receptacle 1248A
PDF, 37 KB
CAD data STP
Panel mounted receptacle 1248A
ZIP, 580 KB
CAD data 3D DWG
Panel mounted receptacle 1248A
ZIP, 2 MB
Dimensional drawing portrait
Panel mounted receptacle 1248A
PNG, 88 KB
Dimensional drawing landscape format
Panel mounted receptacle 1248A
PNG, 89 KB
Videos
Panel mounted receptacle 1248A
Please
accept marketing-cookies
to watch this video.
Directives
Panel mounted receptacle 1248A
REACh
RoHS
