Show all Panel mounted receptacles
/
Show all Panel mounted receptacle
Please
accept marketing-cookies
to watch this video.
Panel mounted receptacle 1125A
Ampere
63 A
125 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
X-CONTACT
straight
receptacles with pilot contact: part no. + index P
Part no.
1125A
EAN
4015394007548
Std. Pack.
5
Add to shopping basket
Technical specifications

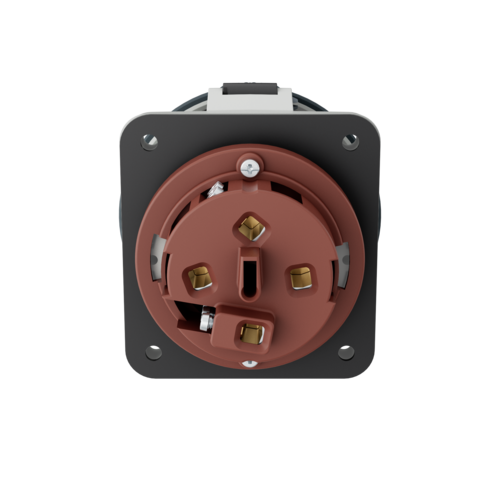

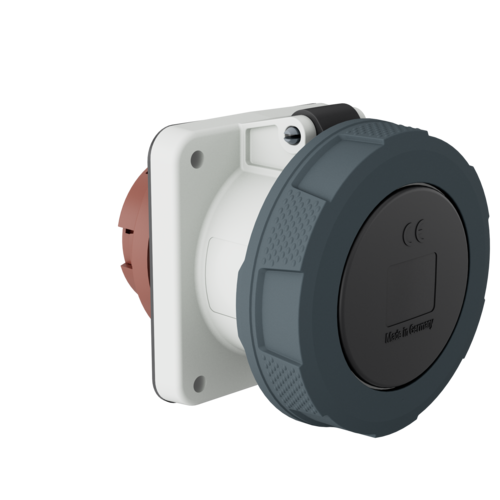

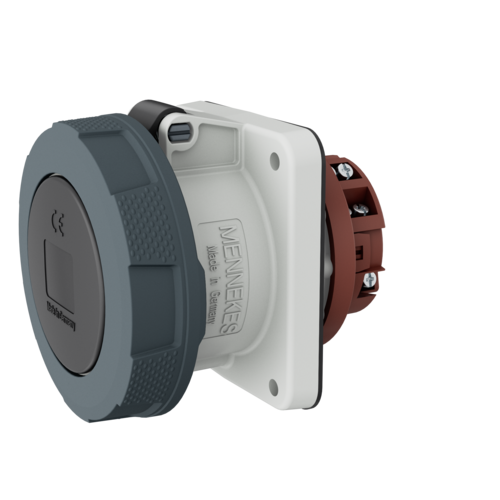

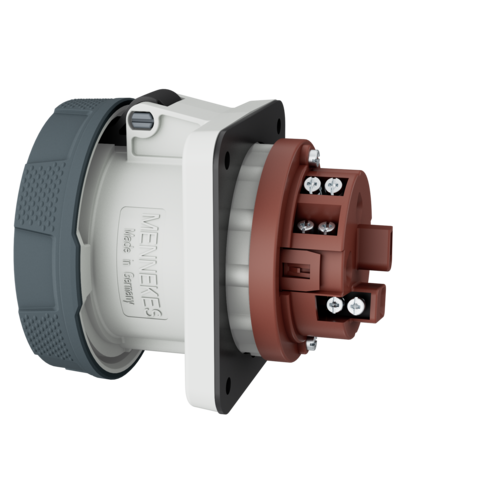

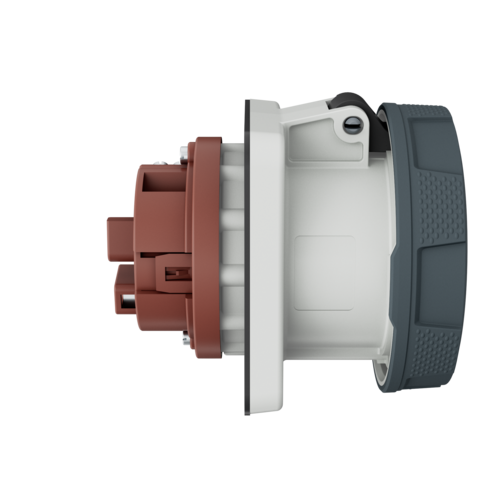

Panel mounted receptacle 1125A
Ampere
63 A
Poles
4 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
X-CONTACT
Protection type
IP67
Flange
107x100 mm
Fixing hole
85x77 mm
Weight
604 g
Certifications
VDE
Datasheets & Downloads
Panel mounted receptacle 1125A
Product info
Panel mounted receptacle 1125A
PDF, 185 KB
Manufacturer‘s declaration
Panel mounted receptacle 1125A
PDF, 37 KB
Dimensional drawing portrait
Panel mounted receptacle 1125A
PNG, 94 KB
Dimensional drawing landscape format
Panel mounted receptacle 1125A
PNG, 94 KB
Videos
Panel mounted receptacle 1125A
Please
accept marketing-cookies
to watch this video.
Directives
Panel mounted receptacle 1125A
REACh
RoHS
