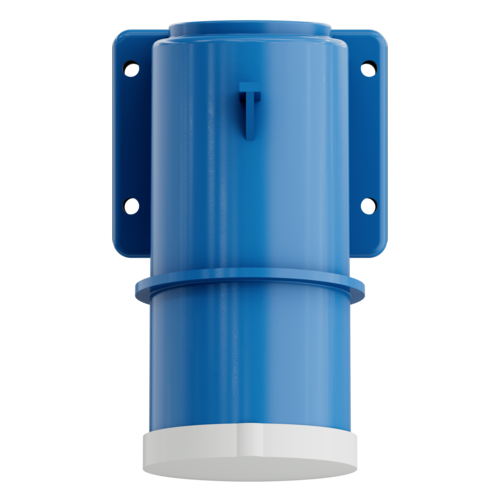

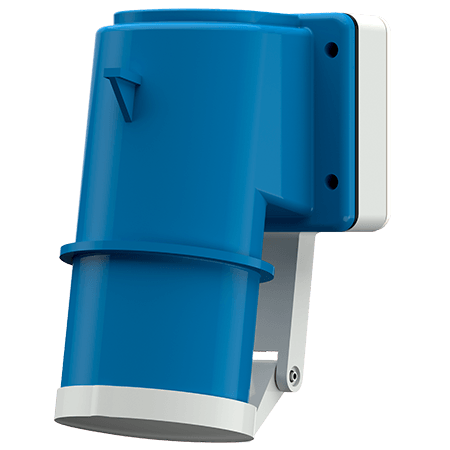

MENNEKES Panel mounted phase inverter inlet 3348
MENNEKES Panel mounted phase inverter inlet 3348 images3d

Panel mounted phase inverter inlet 3348

Poles
Voltage
Clock position
  • screw terminals
  • with hinged lid
  • Part no.3348
  • EAN4015394190431
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted phase inverter inlet 3348

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 210 g
Certifications EAC

Directives

Panel mounted phase inverter inlet 3348

Frequently asked questions about the product

What do I use a phase inverter product for?

If a three-phase motor runs in the incorrect direction, our phase inverter products solve the problem quickly and safely. Use a screwdriver to release the lock and turn the insulating section with the two phase pins - the motor will now run in the opposite direction. More information
