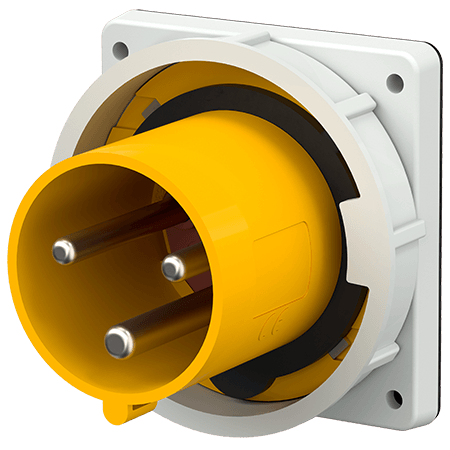

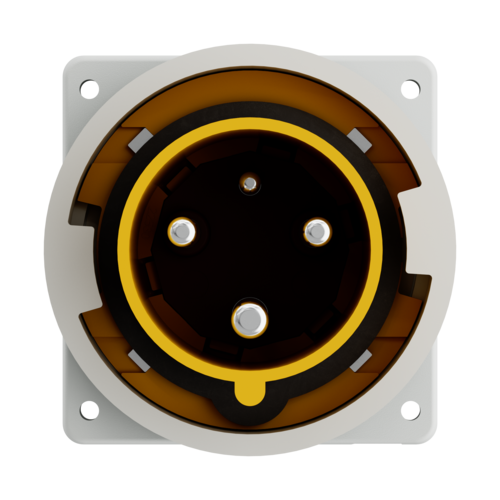

Panel mounted inlet 835

Name: Panel mounted inlet
Brand: MENNEKES
SKU: 835

Ampere 63 A 125 A

Poles

Voltage

Clock position

nickel plated contacts
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking

Panel mounted inlet 835

Ampere	63 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	highly heat resistant contact carrier nickel plated contacts
Protection type	IP67
Weight	478 g
Certifications	CQC
