Show all Inlets
/
Show all Panel mounted inlet

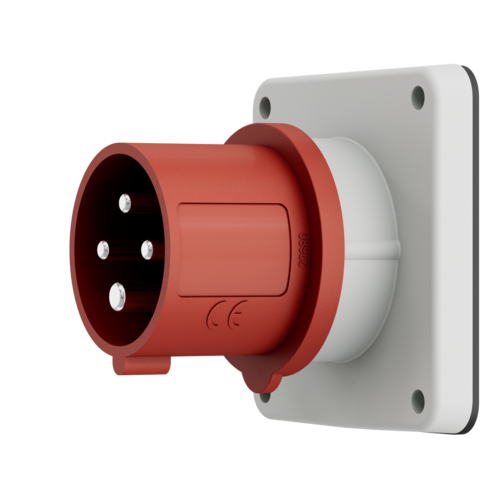

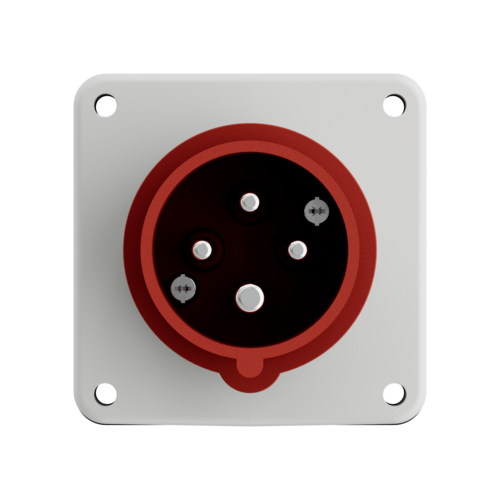

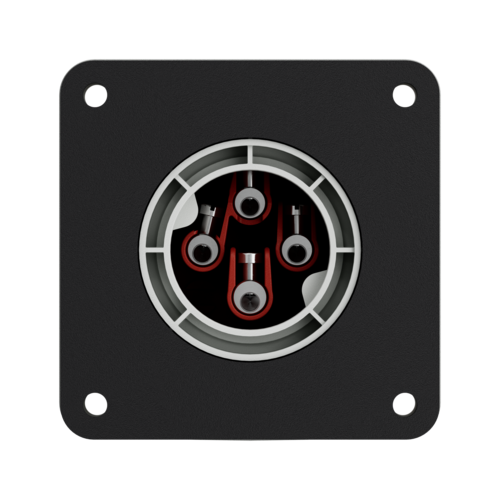

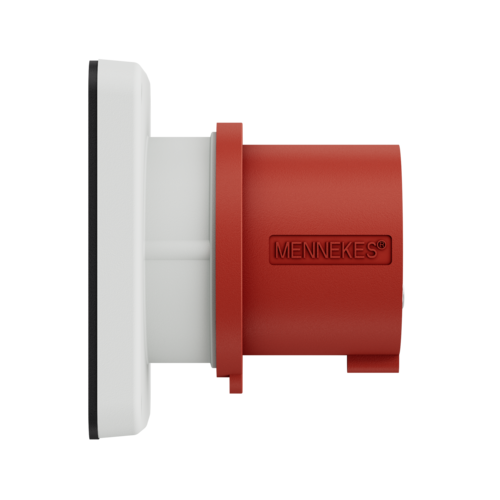

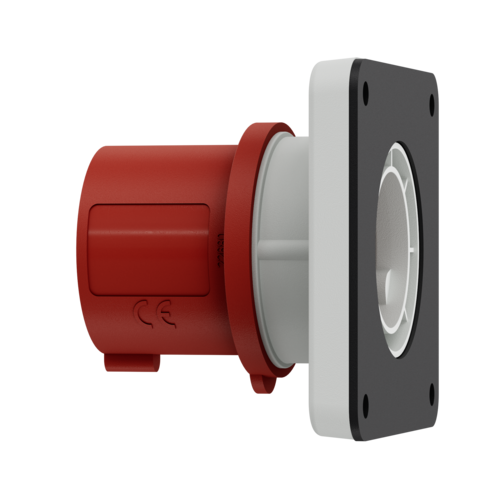

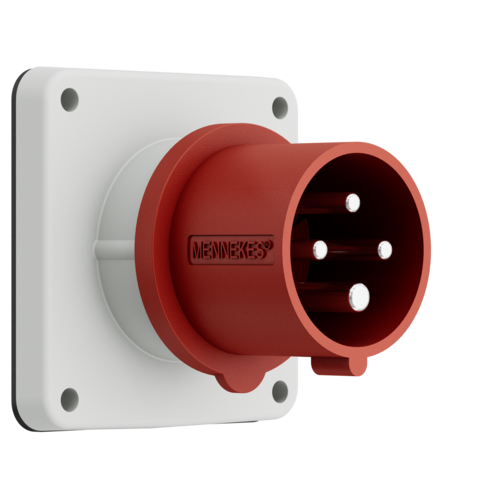

Panel mounted inlet 819
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
nickel-plated contacts
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Part no.
819
EAN
4015394116776
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted inlet 819
Ampere
32 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
nickel plated contacts
Protection type
IP44
Weight
214 g
Certifications
VDE (ÜG)
CQC
Datasheets & Downloads
Panel mounted inlet 819
Product info
Panel mounted inlet 819
PDF, 170 KB
Manufacturer‘s declaration
Panel mounted inlet 819
PDF, 37 KB
CAD data STP
Panel mounted inlet 819
ZIP, 90 KB
CAD data 3D DWG
Panel mounted inlet 819
ZIP, 646 KB
Dimensional drawing portrait
Panel mounted inlet 819
PNG, 97 KB
Dimensional drawing landscape format
Panel mounted inlet 819
PNG, 98 KB
Directives
Panel mounted inlet 819
REACh
RoHS
