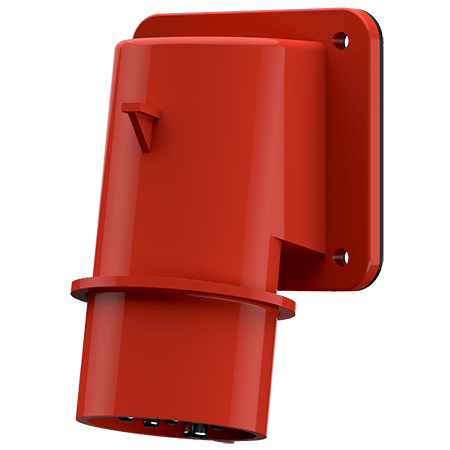

MENNEKES Panel mounted inlet 750
MENNEKES Panel mounted inlet 750 images3d

Panel mounted inlet 750

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • Part no.750
  • EAN4015394005773
  • Std. Pack. 10

Technical specifications

Panel mounted inlet 750

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 204 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted inlet 750

Product infoPanel mounted inlet 750 PDF, 141 KB
Manufacturer‘s declarationPanel mounted inlet 750 PDF, 41 KB
CAD data STPPanel mounted inlet 750 ZIP, 289 KB
CAD data 3D DWGPanel mounted inlet 750 ZIP, 1 MB
Dimensional drawing portraitPanel mounted inlet 750 PNG, 87 KB
Dimensional drawing landscape formatPanel mounted inlet 750 PNG, 87 KB

Directives

Panel mounted inlet 750

REACh
RoHS
