MENNEKES Panel mounted inlet 3657
MENNEKES Panel mounted inlet 3657 images3d

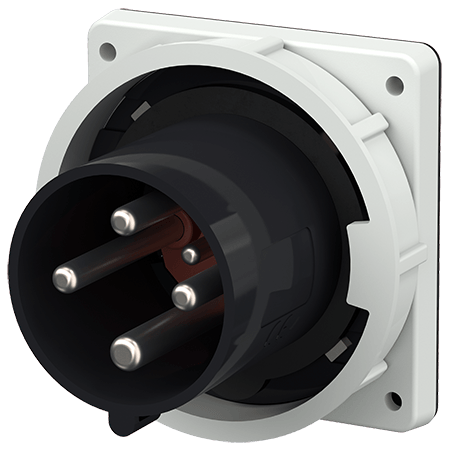

Panel mounted inlet 3657

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.3657
  • EAN4015394020455
  • Std. Pack. 5

Technical specifications

Panel mounted inlet 3657

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 531 g
Certifications CQC

Directives

Panel mounted inlet 3657

Appropriate accessories

Panel mounted inlet 3657

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
