MENNEKES Panel mounted inlet 1984
MENNEKES Panel mounted inlet 1984 images3d

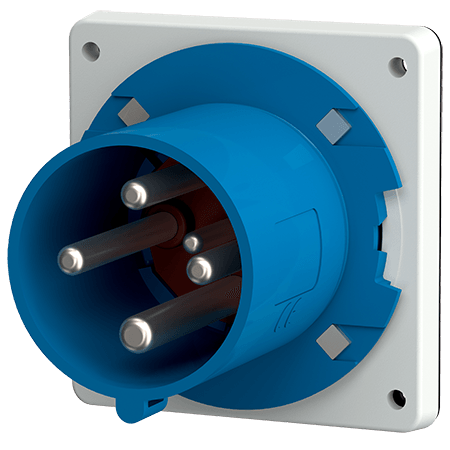

Panel mounted inlet 1984

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.1984
  • EAN4015394013020
  • Std. Pack. 5

Technical specifications

Panel mounted inlet 1984

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP44
Weight 480 g
Certifications VDE (ÜG)
CQC

Directives

Panel mounted inlet 1984
