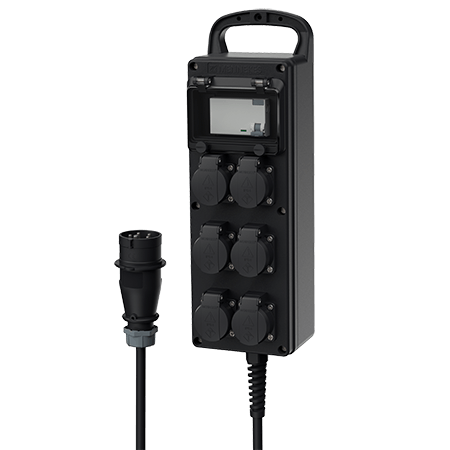

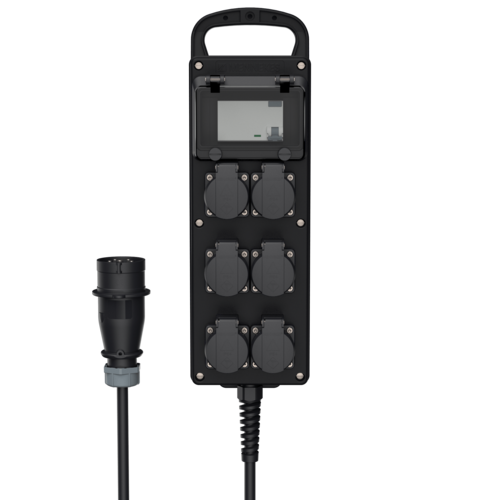

MENNEKES EverGUM receptacle combination 7109560
MENNEKES EverGUM receptacle combination 7109560 images3d

EverGUM receptacle combination 7109560

SCHUKO® 16 A, 230 V
  • solid rubber enclosure
  • pre-wired for installation
  • fusing behind a transparent cover
  • Part no.7109560
  • EAN4015394262008
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM receptacle combination 7109560

SCHUKO® 16 A, 230 V 6
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 2 m H07RN-F5G2,5 with CEE-plug 16 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 4240 g
Height 445 mm
Width 135 mm
Storage receptacle combination D

Directives

EverGUM receptacle combination 7109560

Frequently asked questions about the product

Are there IP5x EverGUM® products?

The standard IP protection classes for the EverGUM® product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.
