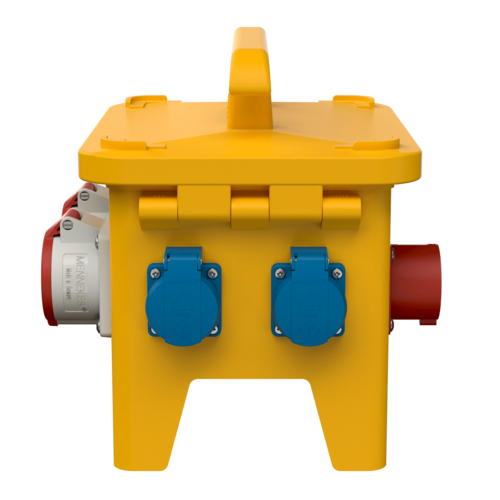

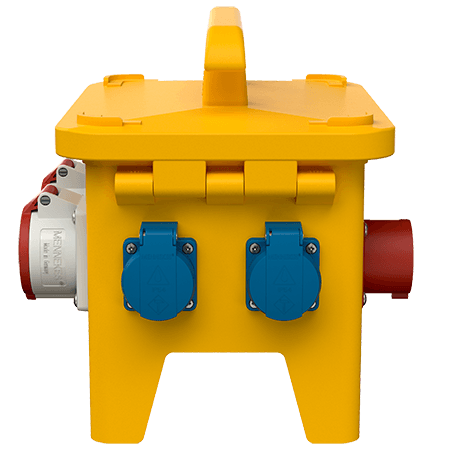

MENNEKES EverGUM receptacle combination 70410
MENNEKES EverGUM receptacle combination 70410 images3d

EverGUM receptacle combination 70410

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • solid rubber enclosure, signal yellow RAL 1003
  • pre-wired for installation
  • Part no.70410
  • EAN4015394160700
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

EverGUM receptacle combination 70410

CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 4
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 1 p, B
Pre-fuse max. 16 A
InA 16 A
RDF 1
Connection/feeder cable
  • 1 inlet 16 A, 5 p, 400 V
Protection type IP44
Enclosure material Solid rubber
Weight 6485 g
Length 306 mm
Height 288 mm
Width 230 mm
Certifications EAC
Storage receptacle combination B

Directives

EverGUM receptacle combination 70410

Frequently asked questions about the product

Are there IP5x EverGUM® products?

The standard IP protection classes for the EverGUM® product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Is there a stand available for the mobile EverGUM®?

Our EverGUM® combination units are suitable for free-standing floor applications. A stand is therefore not required.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
