MENNEKES
MENNEKES DELTA-BOX TM 10861

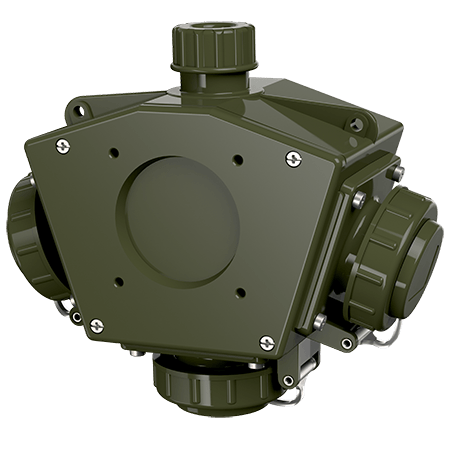

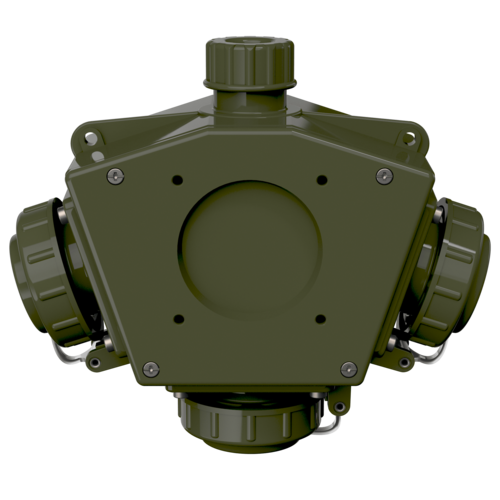

MENNEKES DELTA-BOX TM 10861 images3d

DELTA-BOX TM 10861

SCHUKO® 16 A, 230 V
  • screw terminals
  • with bayonet lid attached by a strap
  • with installed hanging hook
  • with hanging clip
  • Part no.10861
  • EAN4015394035688
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

DELTA-BOX TM 10861

SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • for 1 cable up to 3 x 10 mm²
Protection type IP68
Enclosure material Plastic
Weight 791 g
Certifications EAC
Storage receptacle combination D

Directives

DELTA-BOX TM 10861

Appropriate accessories

DELTA-BOX TM 10861

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile receptacle combinations
