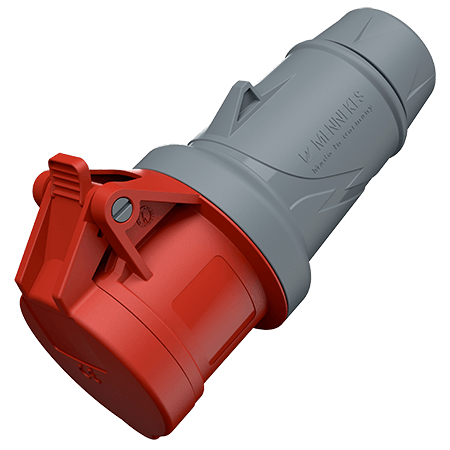

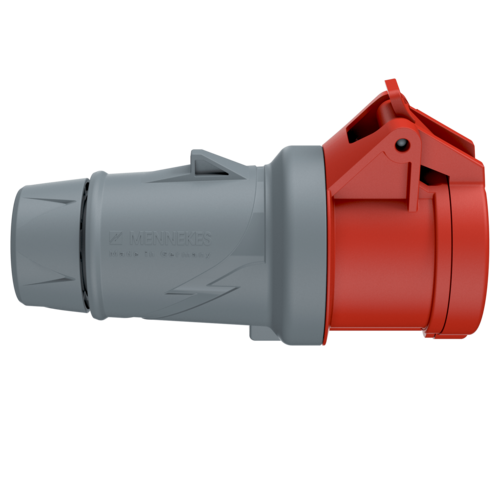

MENNEKES Connector PowerTOP® Plus with ErgoCONTACT® 3409
MENNEKES Connector PowerTOP® Plus with ErgoCONTACT® 3409 images3d

Connector PowerTOP® Plus with ErgoCONTACT® 3409

Poles
Voltage
Clock position
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.3409
  • EAN4015394296461
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP® Plus with ErgoCONTACT® 3409

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact standard
X-CONTACT
Protection type IP44
Weight 255 g
Certifications VDE
CQC

Directives

Connector PowerTOP® Plus with ErgoCONTACT® 3409
