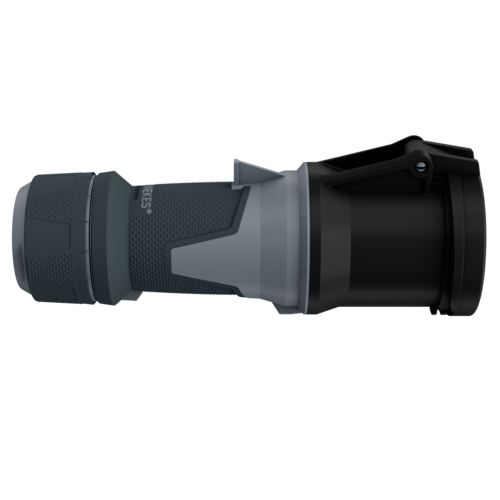

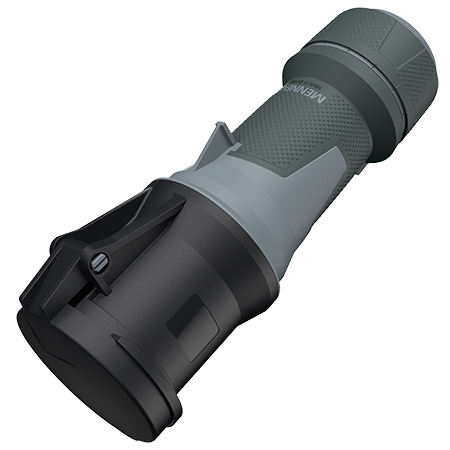

MENNEKES Connector PowerTOP XTRA 14137P
MENNEKES Connector PowerTOP XTRA 14137P images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP XTRA 14137P

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • rubberized grip area
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • with pilot contact
  • Part no.14137P
  • EAN4015394238256
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP XTRA 14137P

Ampere 63 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP44
Weight 924 g

Videos

Connector PowerTOP XTRA 14137P

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP XTRA 14137P
