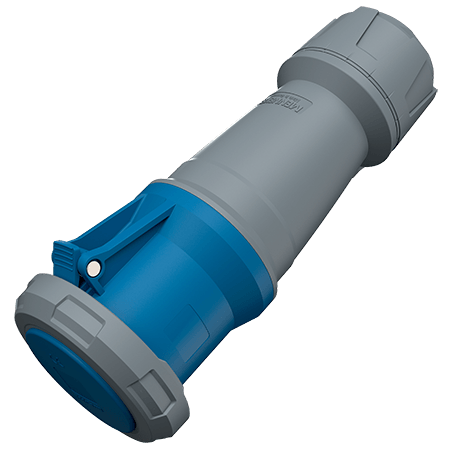

MENNEKES Connector PowerTOP® plus 3457

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP® plus 3457

Poles
Voltage
Clock position
  • screw terminals
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • products with pilot contact: part no + index P
  • Part no.3457
  • EAN4015394248767
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP® plus 3457

Ampere 125 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP67
Weight 1326 g
Certifications VDE
