Show all 7-pole
/
Show all Connector AM-TOP

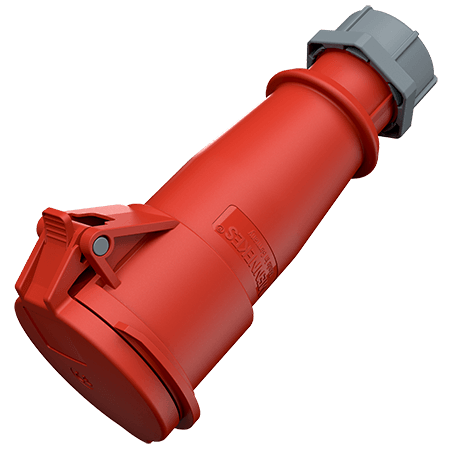

Connector AM-TOP 748
Ampere
16 A
32 A
Poles
7 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
with highly heat resistant contact carrier
nickel plated contacts
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
748
EAN
4015394005759
Std. Pack.
10
Add to shopping basket
Technical specifications
Connector AM-TOP 748
Ampere
32 A
Poles
7 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
highly heat resistant contact carrier
nickel plated contacts
Protection type
IP44
Weight
346 g
Certifications
EAC
Datasheets & Downloads
Connector AM-TOP 748
Product info
Connector AM-TOP 748
PDF, 128 KB
Manufacturer‘s declaration
Connector AM-TOP 748
PDF, 45 KB
Mounting instructions
Connector AM-TOP 748
PDF, 2 MB
Dimensional drawing portrait
Connector AM-TOP 748
PNG, 67 KB
Dimensional drawing landscape format
Connector AM-TOP 748
PNG, 67 KB
Directives
Connector AM-TOP 748
REACh
RoHS
