MENNEKES Connector AM-TOP 544
MENNEKES Connector AM-TOP 544 images3d

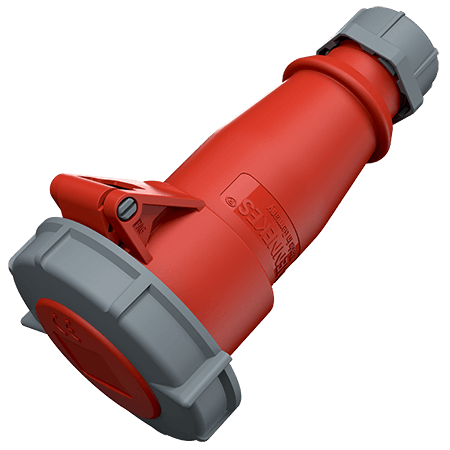

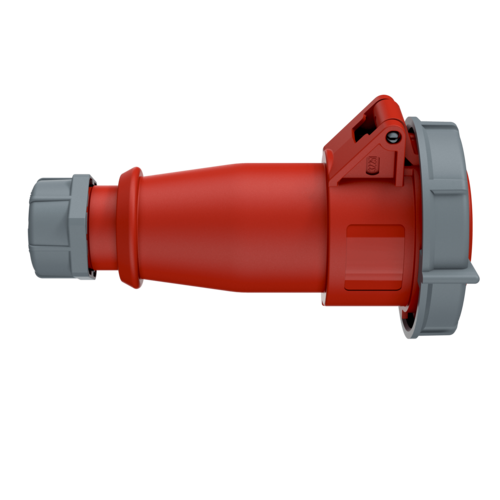

Connector AM-TOP 544

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.544
  • EAN4015394003991
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 544

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 222 g
Certifications VDE

Directives

Connector AM-TOP 544

Appropriate products

Connector AM-TOP 544 with IP67

MENNEKES Plug AM-TOP 282

Plug AM-TOP

Part no. 282

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Panel mounted receptacle 1479

Panel mounted receptacle

Part no. 1479

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle 9322

Wall mounted receptacle

Part no. 9322

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle DUOi 5612406G

Wall mounted receptacle DUOi

Part no. 5612406G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
