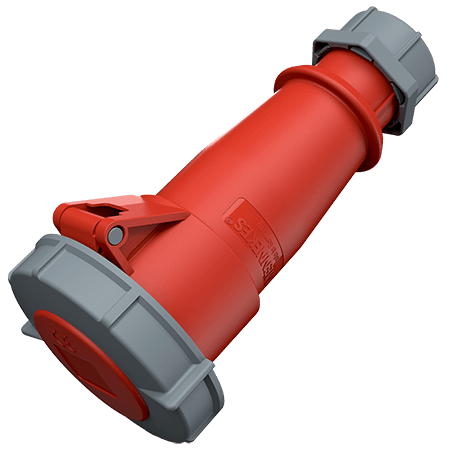

MENNEKES Connector AM-TOP 2255

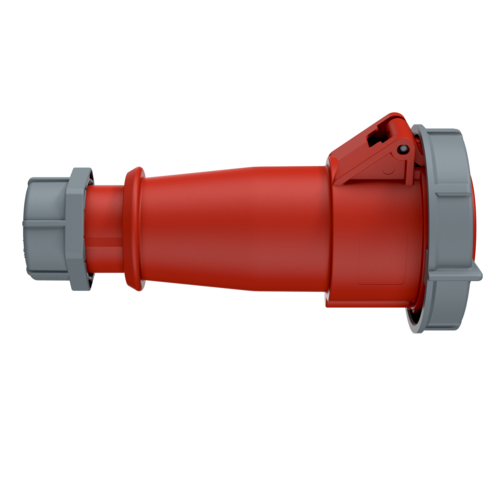

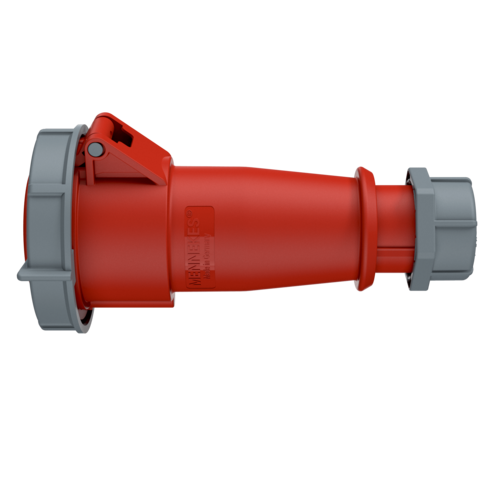

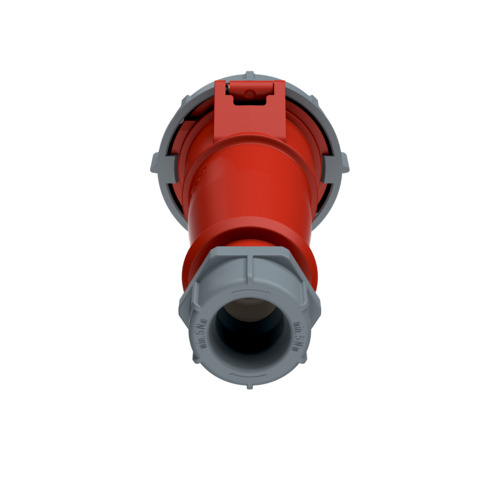

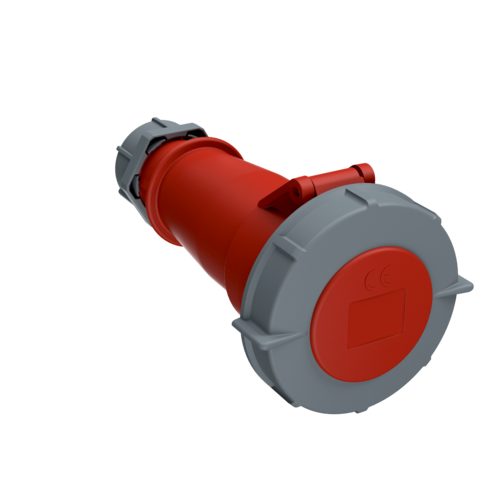

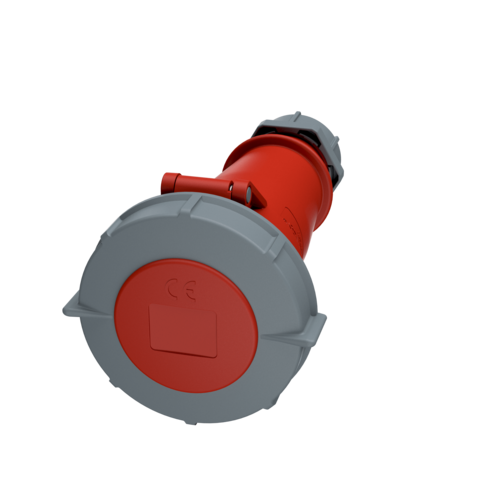

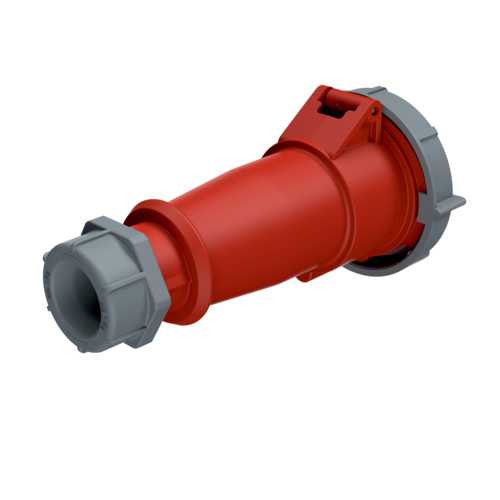

MENNEKES Connector AM-TOP 2255 images3d

Connector AM-TOP 2255

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2255
  • EAN4015394014157
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 2255

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 350 g
Certifications EAC

Directives

Connector AM-TOP 2255
