MENNEKES

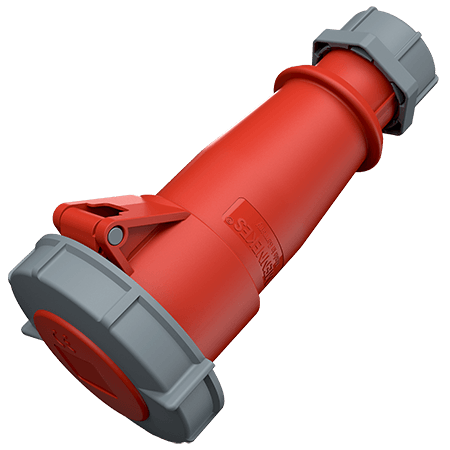

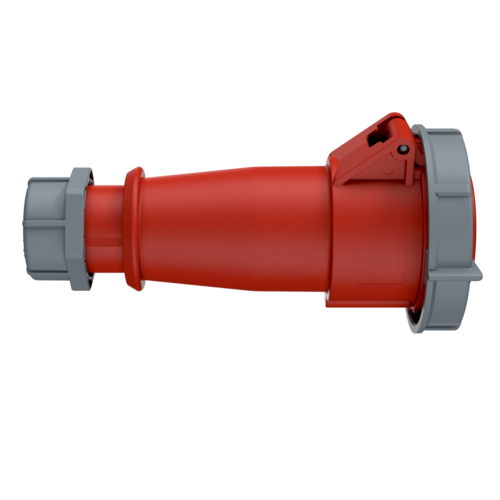

MENNEKES Connector AM-TOP 2177A
MENNEKES Connector AM-TOP 2177A images3d

Connector AM-TOP 2177A

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2177A
  • EAN4015394206545
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 2177A

Ampere 32 A
Poles 4 p
Voltage 400-440 V
Clock position 3 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 385 g
Certifications VDE

Directives

Connector AM-TOP 2177A
