MENNEKES Compact network distributor 25705
MENNEKES Compact network distributor 25705 images3d

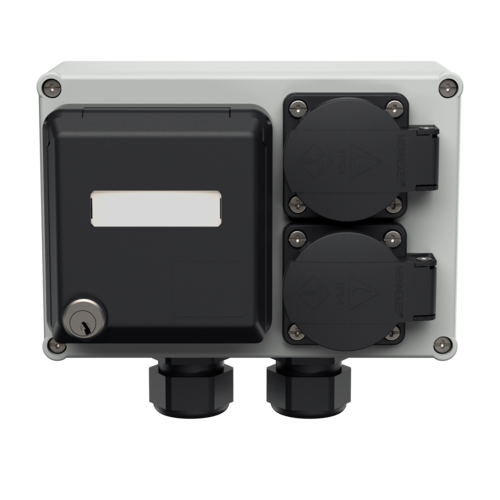

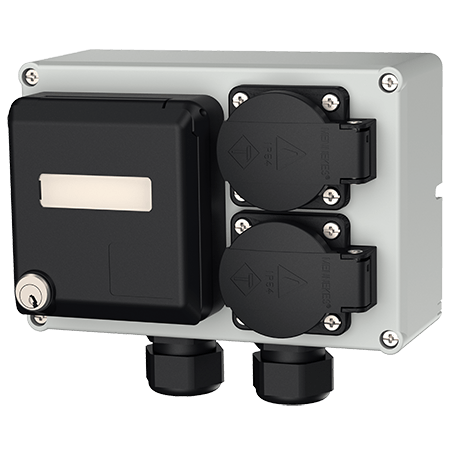

Compact network distributor 25705

SCHUKO® 16 A, 230 V
  • network enclosure made of AMAPLAST
  • protection class IP 44
  • top part electric grey RAL 7035 or yellow RAL 1021, bottom part black with screw-in nuts for installation of a floor-mounted base
  • including a height-adjustable mounting rail
  • cable gland set with multiple seal
  • Part no.25705
  • EAN4015394245773
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Compact network distributor 25705

SCHUKO® 16 A, 230 V 2
Data port sockets 1 Cepex data port socket with 2 RJ45 connection module couplings, type E-DAT module, port, cat.6, brand: BTR
Connection/feeder cable
  • 2 M 25 at the top (closed)
  • 1 M 25 at the bottom (with cable gland)
  • 1 M 25 2 x 8 at the bottom (with cable gland (seal insert for 3 individual cables up to 5-7 mm Ø)
  • with terminal for 1 cable up to 3 x 4 mm²
Protection type IP44
Enclosure material Plastic
Weight 776 g
Height 118 mm
Width 170 mm
Certifications EAC
Storage receptacle combination D

Directives

Compact network distributor 25705
