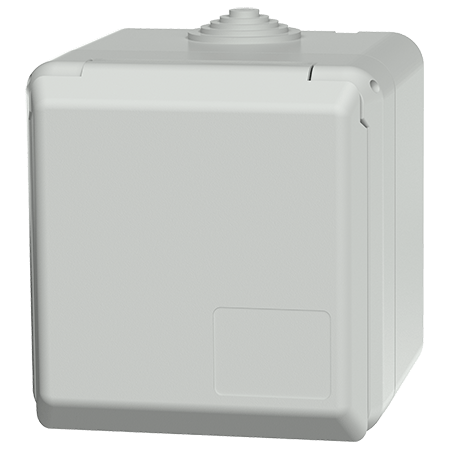

MENNEKES Cepex wall mounted receptacle SCHUKO®, grey 4970
MENNEKES Cepex wall mounted receptacle SCHUKO®, grey 4970 images3d

Cepex wall mounted receptacle SCHUKO®, grey 4970

Ampere 16 A
Poles
Voltage
  • grey
  • screw terminals
  • cable entry: 1 x M 25 with cable gland at top, 1 x M 25 to be cut out at the bottom, 1 x M 20 to be cut out at the back side, for cables 7 up to 13 mm Ø
  • meeting DIN 18032 standards for ball rebound
  • Part no.4970
  • EAN4015394023029
  • Std. Pack. 5

Technical specifications

Cepex wall mounted receptacle SCHUKO®, grey 4970

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 245 g
Certifications EAC

Directives

Cepex wall mounted receptacle SCHUKO®, grey 4970

Appropriate accessories

Cepex wall mounted receptacle SCHUKO®, grey 4970

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)
