MENNEKES Cepex panel mounted receptacle 4175

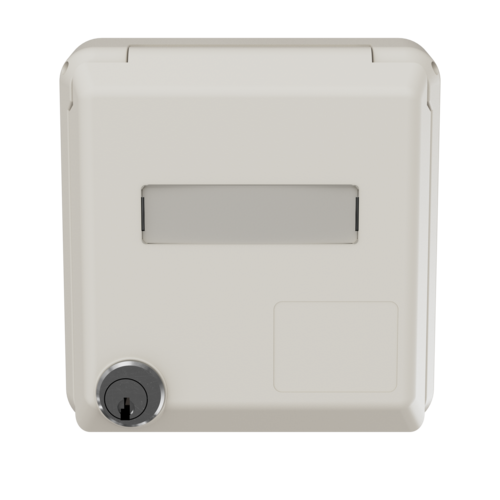

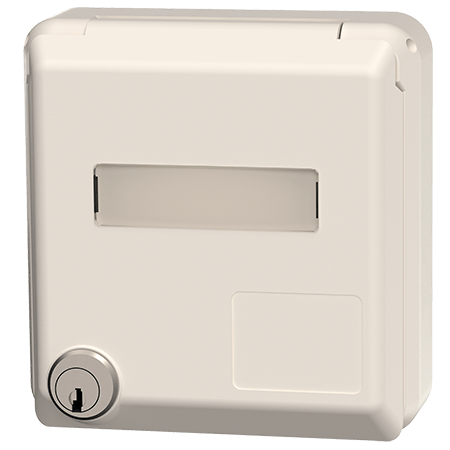

MENNEKES Cepex panel mounted receptacle 4175 images3d

Cepex panel mounted receptacle 4175

Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • with safety lock
  • two keys
  • cannot be dismantled when locked
  • on request with identical locks
  • suitable for installation in cable ducts and columns
  • with identical lock: part no. + index G
  • Part no.4175
  • EAN4015394022312
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle 4175

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 218 g
Certifications VDE

Directives

Cepex panel mounted receptacle 4175

Appropriate accessories

Cepex panel mounted receptacle 4175

MENNEKES Spacer frame 4192

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Spacer frame 4239

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Cepex masking frames 41406

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

MENNEKES Cepex masking frame 41408

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

MENNEKES Cepex masking frames 41423

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

MENNEKES Cepex masking frame 41424

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Frequently asked questions about the product

Are there spare keys for lockable Cepex receptacles?

We are offering a spare lock and a key for our Cepex receptacles. It is not possible to provide a single key.
