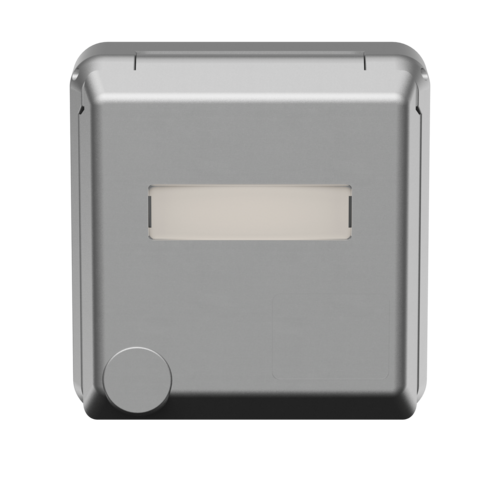

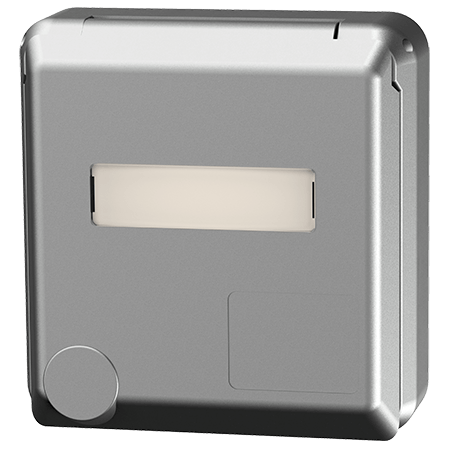

MENNEKES Cepex panel mounted receptacle 4145ME
MENNEKES Cepex panel mounted receptacle 4145ME images3d

Cepex panel mounted receptacle 4145ME

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with labelling field
  • suitable for installation in cable ducts and columns
  • Part no.4145ME
  • EAN4015394201113
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex panel mounted receptacle 4145ME

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 196 g
Certifications EAC

Directives

Cepex panel mounted receptacle 4145ME

Appropriate accessories

Cepex panel mounted receptacle 4145ME

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles
