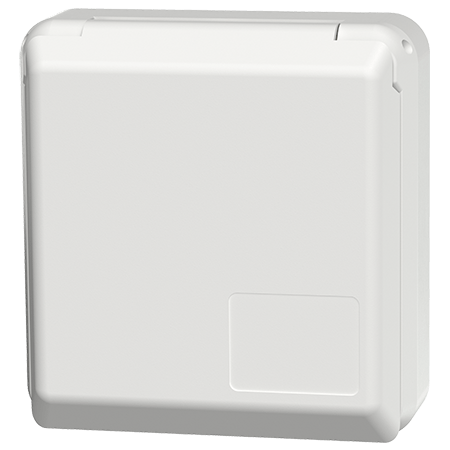

MENNEKES Cepex grounding-type panel mounted receptacle 4909

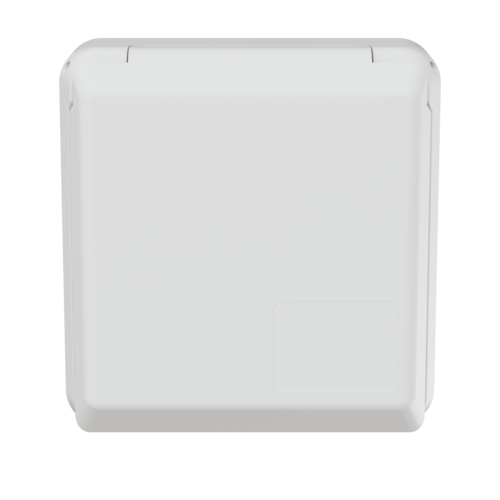

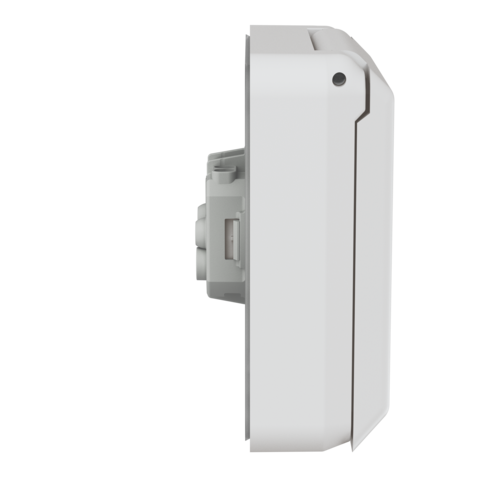

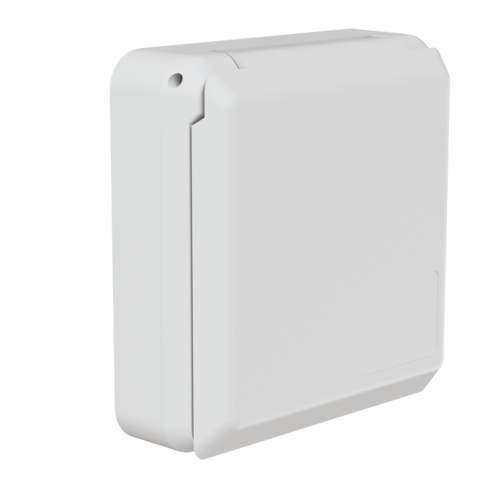

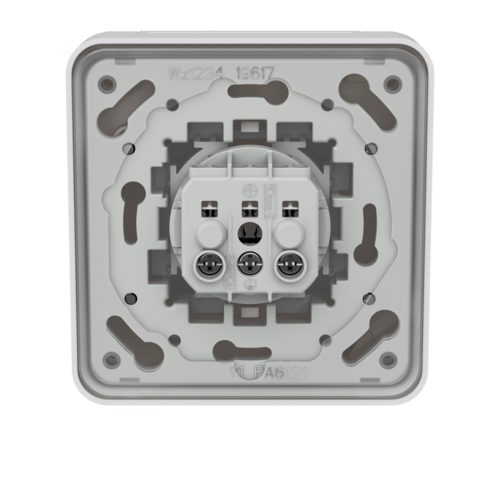

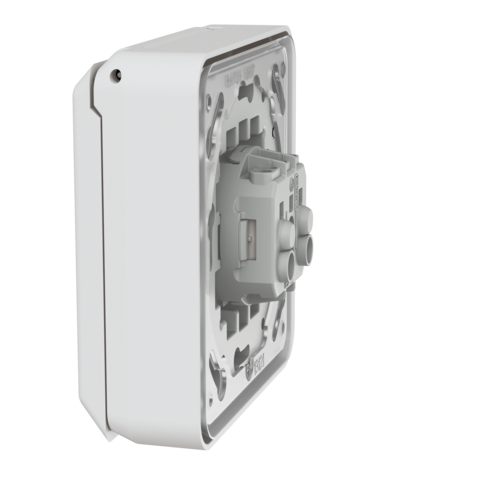

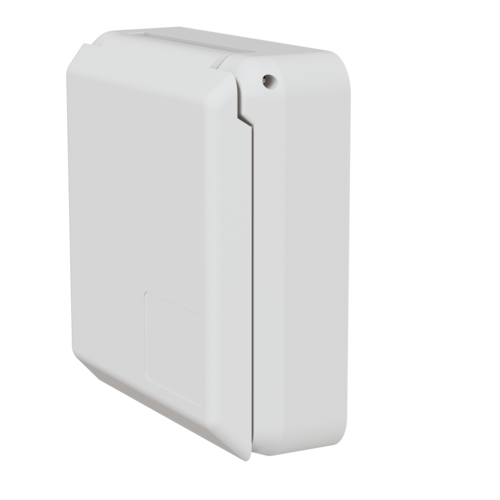

MENNEKES Cepex grounding-type panel mounted receptacle 4909 images3d

Cepex grounding-type panel mounted receptacle 4909

Ampere 16 A
Poles
Voltage
  • french-belgian standard
  • screw terminals
  • for installation in cable ducts and collumns
  • meeting DIN 18032 standards for ball rebound
  • Part no.4909
  • EAN4015394231196
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex grounding-type panel mounted receptacle 4909

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Hertz 50-60 Hz
Protection type IP44
Shutter Yes
Weight 256 g
Certifications EAC

Directives

Cepex grounding-type panel mounted receptacle 4909

Appropriate accessories

Cepex grounding-type panel mounted receptacle 4909

MENNEKES Spacer frame 4192

Spacer frame

Part no. 4192

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Spacer frame 4191

Spacer frame

Part no. 4191

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Spacer frame 4239

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

MENNEKES Cepex masking frame 41424

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

MENNEKES Cepex masking frames 41423

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

MENNEKES Flush mounted installation box 41404

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles
