MENNEKES Angled plug 315
MENNEKES Angled plug 315 images3d

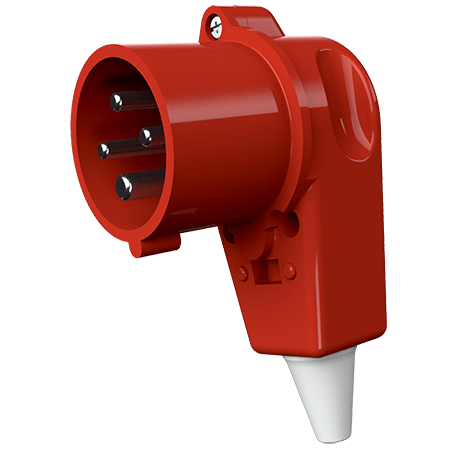

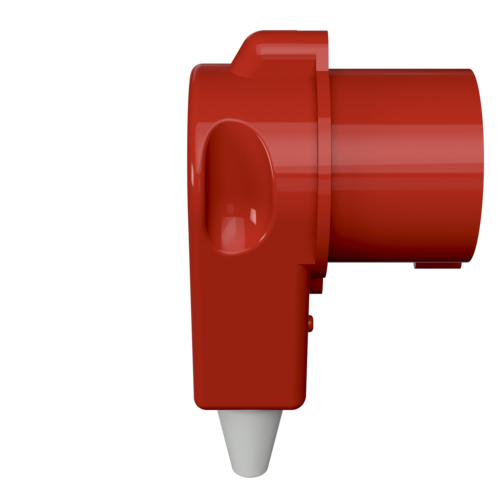

Angled plug 315

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • with grommet
  • especially suited for use with receptacles of the Cepex range
  • Part no.315
  • EAN4015394002178
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Angled plug 315

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Weight 138 g
Certifications CQC

Directives

Angled plug 315
