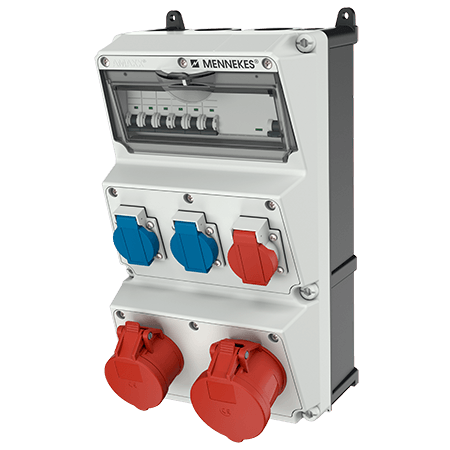

MENNEKES AMAXX receptacle combination 930298

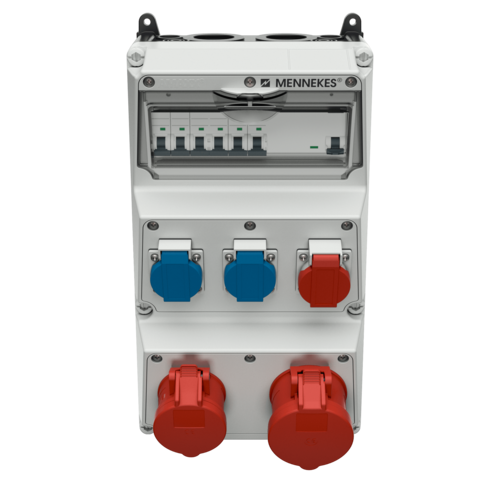

MENNEKES AMAXX receptacle combination 930298 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX receptacle combination 930298

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
Swiss standard - Type 23
Swiss standard - Type 25
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.930298
  • EAN4015394228790
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 930298

CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
Swiss standard - Type 23 2
Swiss standard - Type 25 1
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 2 MCB´s 16 A, 3 p, C
Pre-fuse max. 32 A
InA 32 A
RDF 0.4
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
Protection type IP44
Enclosure material Plastic
Weight 4320 g
Height 390 mm
Width 225 mm
Storage receptacle combination D

Videos

AMAXX receptacle combination 930298

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 930298

Appropriate accessories

AMAXX receptacle combination 930298

MENNEKES Weather shield 15682

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

MENNEKES Weather shield 15690

Weather shield

Part no. 15690

made from stainless steel (material 1.4301), Suitable for 2 AMAXX® combinations each with 2 or 3 segments, with side blinds, for wall mounting or on column, dimensions (H x W x D): 496,5 x 480 x 250 mm

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
