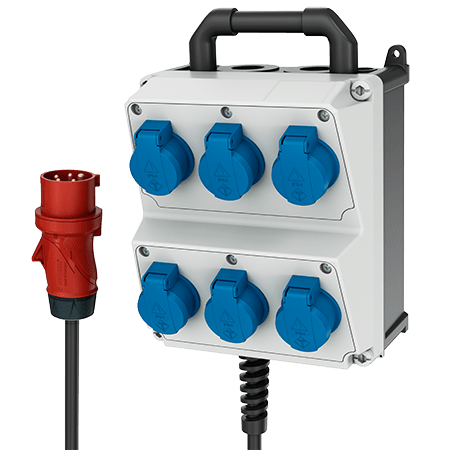

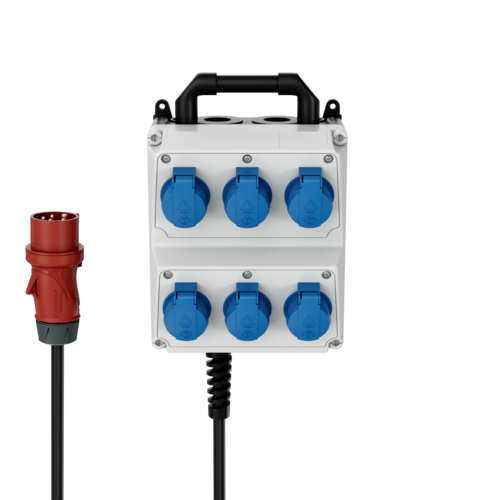

MENNEKES AMAXX receptacle combination 920032

Please accept marketing-cookies to watch this video.

AMAXX receptacle combination 920032

SCHUKO® 16 A, 230 V

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST

Part no.920032
EAN4015394222217
Std. Pack. 1

Technical specifications

AMAXX receptacle combination 920032

SCHUKO® 16 A, 230 V	6
Connection/feeder cable	2 m H07RN-F5G2.5 with CEE-plug 16 A, 5 p, 400 V
Protection type	IP44
Enclosure material	Plastic
Weight	3400 g
Height	260 mm
Width	225 mm
Certifications	EAC
Storage receptacle combination	D

Datasheets & Downloads

AMAXX receptacle combination 920032

Product infoAMAXX receptacle combination 920032 PDF, 158 KB

Mounting instructionsAMAXX receptacle combination 920032 PDF, 2 MB

Dimensional drawing portraitAMAXX receptacle combination 920032 PNG, 101 KB

Dimensional drawing landscape formatAMAXX receptacle combination 920032 PNG, 103 KB

Videos

AMAXX receptacle combination 920032

Please accept marketing-cookies to watch this video.

Directives

AMAXX receptacle combination 920032

REACh

RoHS

Appropriate accessories

AMAXX receptacle combination 920032

Cable gland

Part no. 990608

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

CombiTOWER

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

CombiTOWER

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

CombiTOWER

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, bright finish

CombiTOWER

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

Mounting unit

Part no. 18444

hangable mounting unit, made from light metal, with holes for front and rearinstallation of receptacles and receptacle combinations, 2 enclosures 260 x 225 mm enclosures 390 x 225 mm, colour: white aluminium (RAL 9006)

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® receptacle combinations with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
