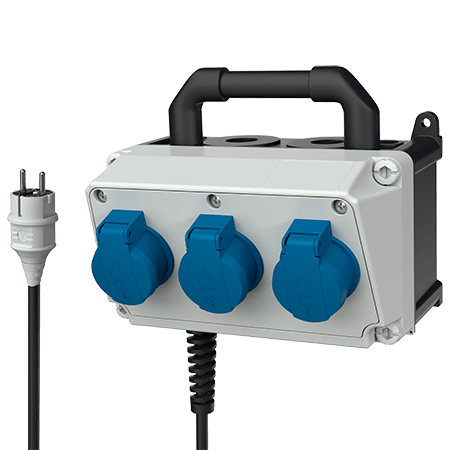

MENNEKES AMAXX receptacle combination 910031

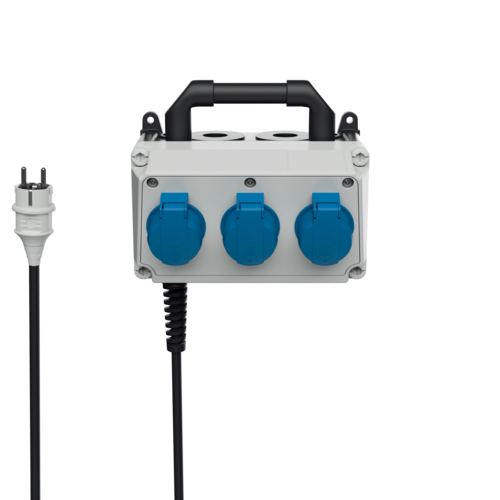

MENNEKES AMAXX receptacle combination 910031 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX receptacle combination 910031

Mit AMAXX® kombinieren Sie clever und sparen dadurch wertvolle Montagezeit. Nur eine Zuleitung, weniger Bohrlöcher, weniger Kabel- und Rohrschellen und nur ein Gehäuse, dessen Außenbefestigung die Ein-Mann-Montage ermöglicht. Der anscharnierte, seitlich öffnende Gehäusedeckel sowie die vorziehbaren Hutprofilschienen und der große Anschlussraum erleichtern die Anschlussarbeiten. AMAXX® ist anschlussfertig vorverdrahtet und auf elektrische Sicherheit und Qualität nach IEC 61439 geprüft.

SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.910031
  • EAN4015394240488
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 910031

SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • 1.5 m H07RN-F3G1.5 with plug SCHUKO® 16 A, 230 V
Protection type IP44
Enclosure material Plastic
Weight 1638 g
Height 130 mm
Width 225 mm
Certifications EAC
Storage receptacle combination D

Videos

AMAXX receptacle combination 910031

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 910031

Appropriate accessories

AMAXX receptacle combination 910031

MENNEKES AMAXX® screw set consisting 990606

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

MENNEKES Cable gland 990607

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

MENNEKES Cable gland 990610

Cable gland

Part no. 990610

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We are offering fully wired receptacle combinations in compliance with IEC 61439. The party completing a partially wired receptacle combination becomes the manufacturer who is thus under obligation to test the receptacle combination in accordance with IEC 61439.

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
